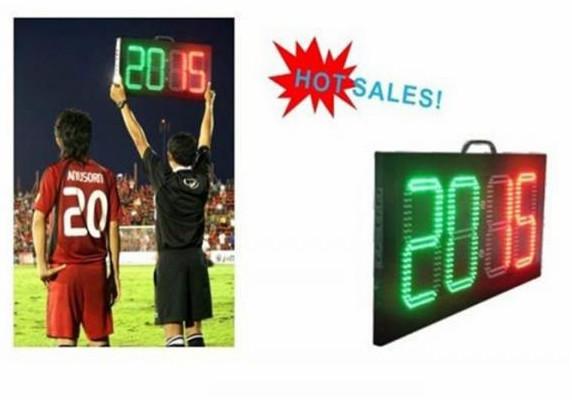

Digital Number 2 Color LED Soccer Substitution Board 2 Side IP62 Light Weight
Product Description Feature:
Two-side substitution board in red and green
Two modes: Substitution and injury time.
Lightweight and easy to carry
Low working voltage make it safer
High brightness intensity
Large LCD: Visible from 200 — 300 meters in open field
Operate method: Wired controlled console (45m cable)
Made according to football competition regulation.
Stable function, save data automatically when power is off.
Specifications:
| 1. Two-Sided scoreboard | |
| 2. High Visibility LED digits | |
| 3. Show the member of substitution with red and green | |
| 4. Medium-sized, convenient to assembly and accommodate easily | |
| 5. Save data automatically after scoreboard shutdown | |
| 6. Remember to charge one time if it is not used over 3 months | |
| 7. Apply to football standard uniform | |
| Power Supply Method | Internal Lithium Battery |
| Working Voltage | 12V DC |
| Battery Recharging Time | 2 hours |
| Light-emitting Device | Φ5mm high visibility red & green LED, life of 10,000 hours |
| Working Environment | Temperature Range: -10°C—50°C Relative Humidity: <80% |
| Protection Class | IP52 |
| Apparent Size | 550mm*263mm*50mm |
| N.W. | 2.6 kg |
| G.W. | 3.4 kg |
| Packing info. | 5pcs/carton |
Introduction:
Football substitution LED scoreboard is a LED display scoreboard.
It adopts super bright LED and has a special control system.
Suitable for all kinds of soccer games. It shows information of
substitution to audience, athlete and judge during the whole
competition.
| The Parameter of LED Digits | |
| Specifications of LED lamps: | |
| Color | Red and Green |
| High Brightness (traffic led) | 1200 mcd ≤ Red and Green ≤ 1500 mcd(20mA) (TAI) |
| Wavelength: | Red and Green traffic Led 620~625mm |
| Branch | 4 red in one branch |
| Horizontal Viewing Angle: | 100° (traffic led) |
| Vertical Viewing Angle: | 40° (traffic led) |
| Specifications of LED digits: | |
| Character Format: | 7 segments per digital number |
| Drive Mode: | Static constant current |
| Voltage: | Power :DC 12V |
| IC chip:DC 5V | |
| Power for 8 | Red: 10.5w /pc Green: 11w /pc |
| Power consumption | 53w /pc |
| Digital height: | 10" |
| Single PCB board Size | 180mm*267mm(LXH) |
| Lines format: | 10” (2 lines) |
| PCB board: | Black base board |
| Control way: | RS232, RF/ LCD remote controller |
| Remote control range: | ≤150m |
| Brightness adjustment: | 8 grades automatic adjusting by light sensor or manually by remote control |
| Working Temp: | -20℃ ~ +60℃ |
| Working Humidity: | 10-90% |
| Input Voltage: | AC120V/220V |
| Protection grade: | IP65 |
| Structure: | Iron cabinet and transparent PC mask |
| Life span: | ≥100,000 hours |
| Maintenance | Warranty: 1 year, lifetime maintenance |
| Accessories: | 9 cores signal cable: 3meters, |
| 2 cores power cable: 3meters | |
| Components: | MW power supply, |
| Control card | |
| Light sensor | |
| The Parameter of LED clock | |
| Specifications of digit: | |
| LED color | Red |
| Height of digit | 10" |
| High Brightness (traffic led) | 1200 mcd ≤ Red ≤ 1500 mcd(20mA) (TAI) |
| Brightness control | Automatically |
| Wavelength | 590nm |
| Horizontal viewing angle | 150° |
| Vertical viewing angle | 50° |
| Max distance of visualization | 420--30 meters |
| Supply voltage | 90-120/220-240V |
| Average consumption | 20W |
| Max consumption | 26W |
| Physical protocol | RF |
| Rate | 9600bps |
| Environment specifications: | |
| Temperature range | -20 +70°C |
| Relative humidity | 10-90% |
| Protection degree | IP-65 |
| Frame specifications: | |
| Material | Cold rolled steel frame |
