beijing sanhe science&technology co., ltd
9 Years
| Ask Lasest Price | |
| Brand Name : | kaixin |
| Model Number : | LM-P6.67 SMD RGB |
| Certification : | UL CE ROHS ISO ETL SGS SAA Fcc EMC |
| Price : | Negotiation |
| Payment Terms : | Western Union, MoneyGram, T/T VISA |
| Supply Ability : | 5,000 square meter per month |
Background Stage LED Display High Resolution SMD with Anti UV Plastic IP65 P8 Rental
Function and Technology Character
1. Light ,suitable for flow shows ,conveninet in transporting and
jointing .
2. Nice appearance and secure
3. Joined correctly, could be dismounted by one person without tool
.
4. Humanized operating interface with breakdown indicator lights
5. Hight brighness and no damage to gray scale , matched well with
the debugging technology with nice image

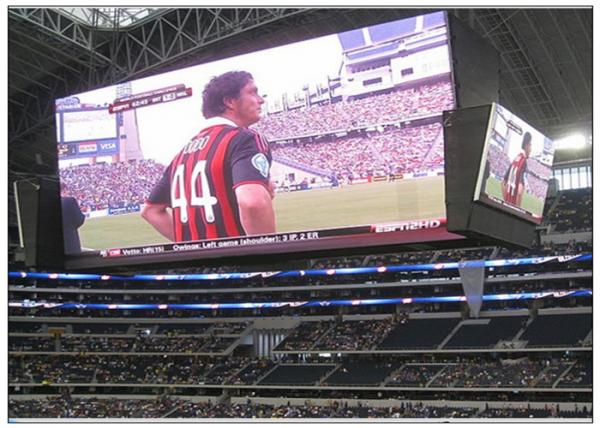

Application Scene: ideal for dazzling different events, such as
stage, concert, fashion show, wedding, conference, building, hotel,
club & bars, festival, etc.
SPECIFICATIONS Parameters:
| Color type | Real full color |
| Module size | 320*320mm |
| Pixel led | SMD3528 |
| Resolution rate | 48*48 |
| Driving IC | MBI5024 |
| Working voltage | DC5V |
| Power | 120W |
| Working temperature | -30°C - +50°C |
| Pixel pitch | 6.67mm |
| Pixel configuration | 1R1G1B |
| Cabinet resolution | 96*96 |
| Scanning method | Constant current driver |
| Work method | 1/8 duty |
| Mask | yes |
| Dot density | 22477/m2 |
| Brightness | 1500-1800CD/m2 |
| Color temperature | 6500K—8000K |
| Best viewing distance | 5m---70m |
| Gray Grade | 16bit |
| Display color | 1024*1024*1024 |
| Refresh frequency | 400-1680Hz |
| Supply voltage | 5V |
| Rated power | 600W/ cabinet |
| Average power | 300W/ cabinet |
| Control system | LINSN |
| Receiving card load method | One cabinet one card |
| Material | Anti-UV plastic suite |
| IP level | IP31 |
| Weight | 12KG/cabinet |
| Cabinet size | 640*640*64mm |
Indoor SMD Rental model: PH4, PH5, PH6, PH7.62, PH8, PH10, PH12,
PH16, PH20, PH25, PH31.25,PH40.....
Outdoor DIP Rental model: PH10, PH12, PH14, PH16, PH20, PH22, PH25,
PH31.25, PH40, PH50, PH70......
Outdoor SMD Rental model: PH6, PH8, PH10, PH12, PH14, PH16, PH18,
PH20, PH25, PH31.25.....
LED SMD soft 360 degree transparent Rental curtain screen
LED SMD flexible transparent curtain Renatal display screen
LED DIP/SMD gridding background stage Rental screen
LED DIP/SMD Strip transparent Rental curtain screen
LED DIP/SMD mesh transparent Rental curtain screen
OEM ODM service is acceptable
| Pixel Pitch | 8mm |
| Panel Size | 1024mm*1024mm |
| Pixel Density | 15625/m2 |
| Pixel Configuration | 1R1PG1B |
| Panel Resolution (pixel) | 128*128 |
| Pixel Number/Panel | 5 |
| Weight of Panel | 58kg/m2 |
| Viewing Distance | 15-300m |
| White Balanced Brightness | ≥7000cd/m2 |
| Power Consumption (average) | 300W/m2 |
| Power Consumption (max.) | ≤1000W/m2 |
| Control Mode | Synchronization |
| Drive Mode | driven by static and constant current |
