beijing sanhe science&technology co., ltd
9 Years
| Ask Lasest Price | |
| Brand Name : | kaixin |
| Model Number : | LM-G10inch |
| Certification : | UL CE ROHS ISO2000 ETL SGS SAA Fcc EMC |
| Price : | Negotiation |
| Payment Terms : | Western Union, MoneyGram, T/T VISA |
| Supply Ability : | 50,000 units per month |
Outdoor LED Gas Price Sign Specification:
| Display Color | Red ,Green ,Yellow, Amber,white etc. |
| Display Dot | Static State |
| Brightness | ≥4200cd/m2 |
| The height of the letter | 8’’,10’’,12`,16`,20`,24`28`,32`,36`,40`,48`,60’’ etc or customed |
| Character types | 7 Segment Digital Display, 4 digital .only one dot 8.888 88.88 |
| Communication | Wireless remote control,each set of sign has one master controller and 4 slave controllers,Master controller share the same ID code with RF controller,One Master controller can control at most 8 pcs LED digits. |
| Input Voltage | 100-240VAC, 50Hz/60Hz. |
| Working Voltage | 5V DC for control circuit and 12V DC for price sign boards. |
| Working Speed | 2Mbps. |
| Angle of View | Horizontal 40~80°,Vertical 40~80° |
| The Frame Color | Black.(depend on the customer) |
| Transmit Distance | Wireless Communication Distance>100m. |
| Maintenance Method | Front or offside Maintenance |
| Visibility | >300m |
| Applied Environment | -10℃~60℃-10~80%RH. |
| The material for the outline | Iron with black powder coated |
| Cabinet type | Single side (thickness:55~70mm)/ double sides(thickness:100~150mm) |
| Waterproof Rate | IP65 |
| Life span | 100,000 hours |

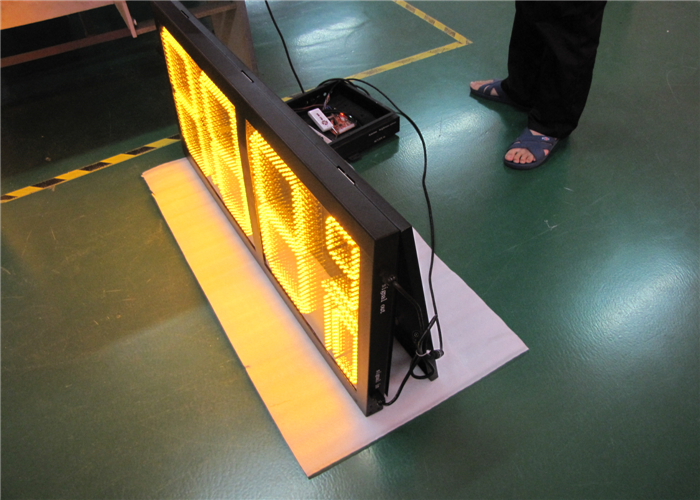

Introduction and function of amber gas station price led sign board :
1. amber yellow gas station price led sign board is very convenient to handle with the frequent fluctuant of price display, which is widely used in the presentation of price of gas station.
2. General use for digital indicators t is not only quite a great
3. LED clock display,Led Digital Timer,Led Digital Score Board
4. Bank exchange rate display other various digital display areas of equipment/machine.
Amber gas station price led sign board Features:
1. Amber gas station price led sign board ,which is made by first-class Taiwan Led Chip, High brightess ,easy catch people's eys on high way.Long Life-span and steady.
2. Easy Installation & Using. it's customizable and auto-adjustable.
which can assemble any formats you want. 8.8. , 8.8.8., 8.8.8.8. , 8.8.8.8.8. etc.
3. The number 8 can show any digits you want. 0 - 9 , and dots.
4. The material of the cabinet can choose iron,aluminum ,simple
box.
5. The display can use for one side. double sides, three sides etc.
6. With a wide range of viewing angles, the horizontal and vertical all come to more than 110 degrees.
Amber gas station price led sign board basic information:
1. Size:12"(4"8"10'' 14'' ,16",20"and 24" etc)
2. Color:Amber(Red,Yellow,Green,White.Blue)
3. Digital Number format: 8.888 / 8.8888/ 8.889 /8.88 9/10
4..PCB size: 325*233 MM
5. LED numbers:153pcs
6. Max Power: 20W
7. Power:12V
8. Viewing Distance: 150m
9. Wide View Angel :90 degree
10. Brightness : 4000cd/m2
11. Working Temperature:-20 to + 80
12. Humidity :0% -95% RH
13. Single digit weight: 0.5kg
14. Control Way: Wireless RF remote Control
15. Control Distance:30m -100m
16. Brightness Grade: 8 grades by automatic adjustment
17. Warrranty:1 year
18. Life Span:100,000hours
| Size | 8inch | 12inch | 12.5inch | 16inch | 18inch | 20inch |
Quantity of LEDs | 108pcs | 250pcs | 250pcs | 273pcs | 635pcs | 669pcs |
Front Height | 195mm | 300mm | 310mm | 400mm | 462mm | 500mm |
| Power | 5.4W | 11.5W | 10.9W | 9.1W | 9.6W | 11.4W |
| PCB Size | 143mm*327mm | 225mm*317mm | 232mm*327mm | 300mmx422mm | 353mmx498mm | 390mmx558mm |
Color | red / yellow / green / blue /amber / white | |||||
Cabinet Size (8889/10 or 888.8with IP65 waterproof iron cabinet) | 27*64.3*4cm | 40*100*4cm | 40*100*4cm | 49*126*4cm | 56*147.3*6cm | 62*164.5*6cm |
| Control box size: | 300*300*80mm | |||||
| Control System | RF controller. RF remote, Meanwell Power supply and Fan,7 grade automatic adjustment brightness | |||||
| Control Distance | 30m --100m | |||||
| Package | Plywood with EPE, Netural package. | |||||
Product Tags:
 |
Multiple size waterproof LED Gas Station Sign with Rear / Front Access , Single / Double Side Images |
|
|
