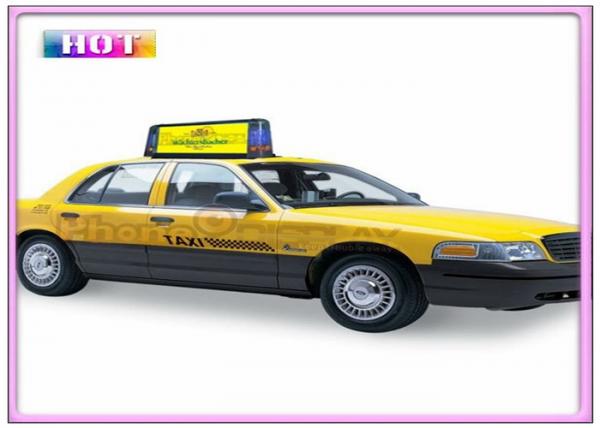

Aluminum AlloySlim P5 Taxi LED Display Programmable with 3G / WIFI / GPS / USB Wireless
Features:
Aluminum alloy casing with ultra thin
Outdoor Taxi Roof Video Led Display with ultra thin and light
design, made of aluminum alloy casing to
reduce the weight of the display and the space, thereby it greatly decreased the weight-bearing. In addition, the full metal jacket design can effectively prevent the display splash screens,
shaking screen phenomenon.What is more , its electromagnetic
shielding is also perfect!
Well Designed Cooling System
Outdoor taxi roof video led full color display has special cooling
system design.The air goes inside
from the heading direction and soon form the air flow inside the display as below illustration shows
and two fans at the back-end of the display will pull the air which will make the equipment work more
reliable in high temperature and high humidity environments.
IP 65 design & Long Lasting Display double sides
Outdoor Taxi Roof Video Led Display With IP65 Waterproof rate,
:rain-proof,lightning protection,shockproof,Module design,Easy
installation and maintenance, It Can work
under the complex outdoor environment.
3G High Speed data Transferring
Outdoor taxi roof video led full color display has amazing data
transferring speed. For expample a 100
MB Video File only needs 2 minutes to upload to the screen.
Technological Parameters:
| Numbers | Technical indexes | P5 Car roof LED Video Screen |
| 1 | Pixel pitch | 5mm |
| 2 | Module size | 160mm× 160mm |
| 3 | Module resolution | 32× 32 |
| 4 | Module density | 40, 000dots/sqm |
| 5 | Pixel configuration | RGB ( SMD 3 in 1 ) |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | more than 5 m |
| 11 | Horizontal viewing angle | 140° |
| 12 | Vertical viewing angle | 70° |
| 13 | Maximum power consumption | ≤ 1200W/m2 |
| 14 | Brightness | ≥ 5000cd/m2 |
| 15 | Gray scale | 16bits of per color |
| 16 | Color temperature | 6500K |
| 17 | Control method | Asynchronization with 3G |
| 18 | Driving method | 1/8 scanning |
| 19 | Frame frequency | 60Hz |
| 20 | Refresh frequency | ≥ 2000 Hz |
| 21 | Working voltage | AC220V/110V± 10% |
| 22 | IP grade | IP65 |
| 23 | Working temperature | -20° C~80° C |
| 24 | MTBF | More than 10, 000 hours |
| 25 | Life span | More than 100, 000hours |
