| Brand Name : | kaixin |
| Model Number : | LM- P10 |
| Certification : | UL/CE/ROHS/FCC/ISO/EMC |
| Price : | Negotiation |
| Payment Terms : | Western Union, MoneyGram, T/T VISA |
| Supply Ability : | 5,000 square meters per month |
Advertising Digital SMD LED Display with Multi language Die Cast Aluminum Cabinet
Product Features:
1. Type:LED Screen,Floor Tile Series
2. Model Number:K-P10
3. Voltage: AC110V~240V 50~60Hz
4. Power:100-1200
5. Play Mode: Sound Active/Auto-Play/DMX512/Master-Slave
6. Light source:LED
7. Pixel denfiguration: 1Red,1Green,1 Blue
8. Control:LED display
9. Material: Plastic shell,aluminum base
10. Net Weight: <65kg/square meter
11. Module Size : 160mm*160mm

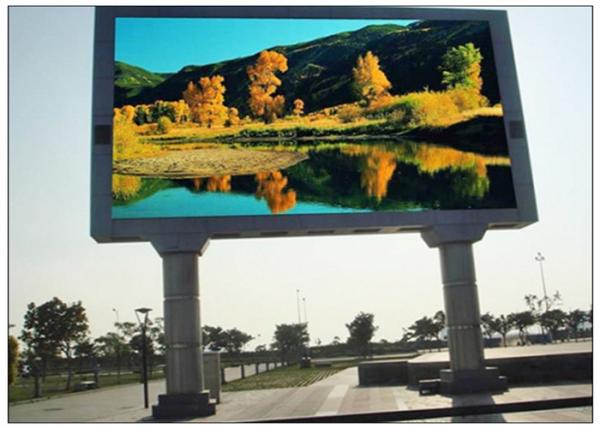

Product show
Technical Parameters:
| Pixel pitch | 10mm |
| Pixel density | 10000 dots/m2 |
| Pixel configuration(DIP/SMD) | 1R1G1B(346DIP)/R1G1B(5050SMD) |
| Max brightness | 8000 nit |
| View angle(horizontal) | ±55° |
| Gray scale | 65536 (16 bit) |
| Colors | 16.7M |
| Color temperature | 6500K |
| Refresh rate | 3000HZ |
| Contrast ratio | 4000:01:00 |
| Frame rate | 60HZ |
| Standard cabinet size | 960×960mm |
| Weight(DIP/SMD) | 60KG/m2/45KG/m2 |
| Cabinet resolution | 96×96 pixels |
| Cabinet material | Steel (cold rolled iron) or Aluminum (optional) |
| Protection level | IP65 |
| Max power consumption | 900W/m2 |
| AVE. consumption | 400 W/m2 |
| Drive Method | 1/4 scan, constant current |
| Malfunction dot rate | 0.1≤‰ |
| Control mode | PC synchronous or asynchronous control(optional) |
| Input voltage(AC) | AC90—240V |
| Operation voltage | DC5V |
| Operation temperature | -20~60°C |
| Operation humidity | 10%~90% |
| MTBF | 1000h |
| Life span | 100000h |
super brightness rgb SMD outdoor full color LED screen P6 P8 P10 LED display/led video display
Our Services:
Focused. We Believe Focus Makes Perfection. We Focus On LED
Advertising Disputes
55+ Countries Projects Experience In The World So Far
8 Years Warranty Planning...
5 Distributors:UK,Finland,New Zealand,South Africa,Nigeria
20+ years experienced,English Speaking Engineer Specialist Team
12+responsible sales Team with fluent English and Spanish Skills to
be connected 7/24.
Unique On-Site Engineering Service
Energetic Team Life
Q1: How would I do when something was wrong with the screen?
A1: Professional engineers would offer onsite maintenance to your
country.
Q2: How would I select LED screen that I need?
A2: The lower Pixel pitch,the more density,the more clear, the more
expensive as well.
Q3: Where LED screen can be applied?
A3: It is seen everywhere in your life. Mall advertising;bank queue
system,taxi top board ,stage background display and more.
