| Brand Name : | kaixin |
| Model Number : | LM-W8 |
| Certification : | UL CE ROHS ISO ETL SGS SAA Fcc EMC |
| Price : | Negotiation |
| Payment Terms : | Western Union, MoneyGram, T/T VISA |
| Supply Ability : | 5,000 square meters per month |

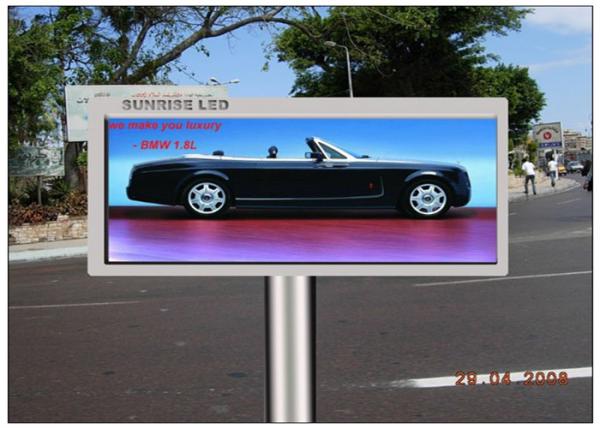

Advertising Transparent LED Screen , CE 16mm Pitch Pixel Electronic
Display Board
Product Description:
1. Outdoor advertising LED display
2. High brightness,stable,durable
3. Waterproof,IP65
4. CE,RoHS,FCC certificate
1. Good LEDs:use Epistar DIP LEDs,it has excellent performance in
antistatic ability and UV protection;Waterproof grade IP65,all
weather available.
2. Energy saving: low electric current, high-brigh lamps,equipped
with PFC swithing power supply,save 30% electricity.
3. High refresh rate,high gray level:it can reach 16bit by using
PWM driving IC,refresh rate is more than 1000HZ,the gray level is
still high even under the condition of low brightness.
4. Color correction:support dot-to-dot correction,guarantee the
consistence of LED color and brightness,No chromatic aberration for
new screens.
5. Dual back-up:both power supply and system dual back-up are
optional,reliable performance.
6. Error detection and monitoring:it can monitor the inner
temPerature,voltage,cooling fans etc and error detection
automatically.
Technical Specification:
| Item | Parameter |
| Pitch Pixel | 16mm |
| LED Configuration | 1R1G1B |
| LED standard | SMD5050 |
| Module Demension | 256mm*128mm |
| Module Resolution | 16*8 Pixel |
| Cabinet Demension | 1024mm*768mm |
| Cabinet Resolution | 64*48 Pixel |
| Luminance | ≥ 7000nits |
| View Angle | H:120° V:120° |
| Power Consumption (Max/Average) | 800/250 (W/sqm) |
| Operation Temperature | -25°C ~+ 65°C |
| Best View Distance | 16~150 Meters |
| Lifespan | 2 years |
| IP Rating (Front) | IP65 |
| Pixel Density | 3906Dots/sqm |
| Drive Mode | Static constant current |
| Input Signal | RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPOSITON |
Perfect service after sale :
1) Guidance service: We can guide on line if customers have
questions about the installation and usage.
For large project, we provide your engineer a week free training,
or if customer could bear the relevant cost, our engineer can go to
customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon
as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all
maintenance charges. Under normal use and storage, our company will
be responsible for the equipments. If there is any failure in
product quality, our company will maintain and change the
components for free. After Maintenance period, only charge the
material costs fees free of manual work fees.
