| Brand Name : | kaixin |
| Model Number : | LM-P6.25 |
| Certification : | UL CE ROHS ISO ETL SGS SAA Fcc EMC |
| Price : | Negotiation |
| Payment Terms : | Western Union, MoneyGram, T/T VISA |
| Supply Ability : | 5,000 square meters per month |
Lightweight The aluminum die-casting technology makes the single cabinet as light as 8.3KG. | |
Ultra thin The thinnest point of the cabinet is only 72mm, making it easily to be fitted in small room. | |
Easy to install No need of other tools. It takes 15 minutes for 2workers to finished 20 sqm installation. | |
High IP The IP65 insures the reliable operation in severe environment. | |
Easy to maintain No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose. | |
Noiseless The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent. | |
Ghost canceling Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled. | |
High refresh rate Over 2880Hz refresh rate to ensure the picture wrinkle-less, lineless and stable. | |
Low brightness and high gray scale 14Bit-16Bit gray scale to bring excellent performance when brightness reduced to 20%. |

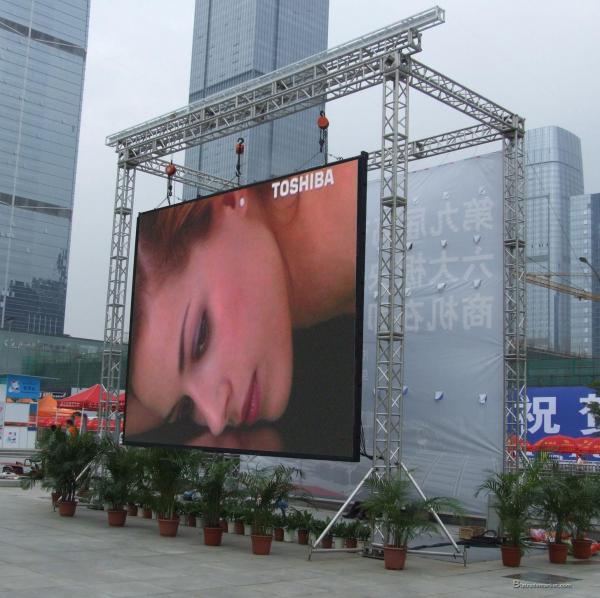

This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on.
| Items | Parameter |
| Pixel Pitch | PH6.25mm(Outdoor) |
| Module Resolution(W*H) | 80(W)*80*(H) |
| Pixel Configuration | 1R1G1B(in 3 n 1) |
| LED Encapsulation | Black SMD 3528 |
| Pixel Density | 25600 Pixel /m2 |
| Driving Method | 1/5 Scan |
| Refresh Frequency | ≥2880Hz |
| Driver IC | Special constant current IC with high refresh rate & hight grey scale |
| Grey Scale | 14Bit(depending on the system and IC configuration) |
| Cabinet Size | 500*500mm |
| White balance Brighthess | ≥5000cd/ m2 |
| Color Temperature | 8000K±500( adjustable) |
| Viewing Angle | Horizontal 140° Vetical 120° |
| Optimal Viewing Distance | ＞6m |
| Working Voltage | AC 220V/110V ±10% |
| Module voltage | DC4.2V |
Max Power Consumption /per module | 200W/PCS |
Avg.Power Consumption /per module | 100W/PCS |
| Lifetime | 50000 hours |
| Operating Temperature | –10℃ ～ 65℃ |
| Net weight | 8.3Kg/pcs |
 |
Waterproof Full Color Rental Led Billboard Advertising Led Display Constant Static Images |
|
|
