| Brand Name : | kaixin |
| Model Number : | LM-V2.5 |
| Certification : | UL CE ROHS ISO ETL SGS SAA Fcc EMC |
| Price : | Negotiation |
| Payment Terms : | Western Union, MoneyGram, T/T VISA |
| Supply Ability : | 50,000 units per month |

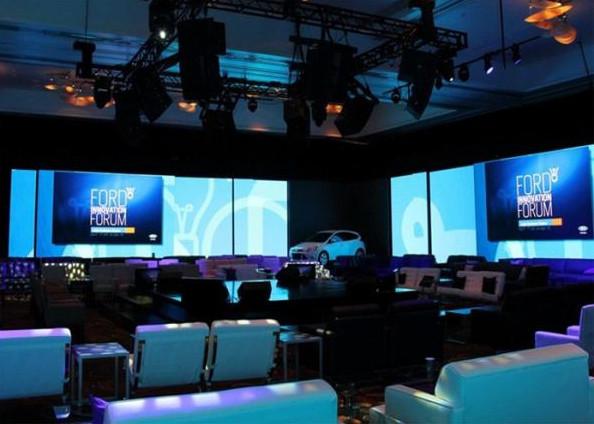

Die Casting Aluminum Slim Indoor Epistar Interactive Video Wall LED SMD RGB 3 in 1
Product Description:
SIX High Drive Technology
1. High-Precision:Work under 0.5mA constant current, brightness
70-300 mcd.
2. High Refresh Rate:2400 Hz for 1/32 duty screen, 4800 Hz for 1/16
duty screen, 9600 Hz for 1/8 duty,
19200 Hz for 1/4 duty.
3. High-Gray Scale:Real 20bit.
4. High Reliance:Anti-static 6Kv.
5. High-Energy Saving:Save 66% energy.
6. High Frame Frequency:120hz frame frequency working mode.
Technical Specification:
| tems | Parameter |
| Product Model | P2.5 Full Color Led Module |
| Module size | 160 x 160 mm |
| resolution ratio | 64 x 64 dots |
| Pixel pitch | 2.5 mm |
| Pixel density | 160000 dots/m2 |
| Pixel configuration | RGB 3 in 1 |
| Driving method | Constant Current Driving,1/32 scan |
| Working voltage/Module maximum power consumption | DC5V,12W |
| Led Lamps | SMT2121 |
| The specifications of cabinets | |
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1920HZ |
| Display colour | 281.4 trillion |
| Grey scale | 65536 |
| Brightness in White Color (cd/m2): | 500-1500 CD/m2 |
| Brightness adjustment | 200-1000CD,automatic or manual 1%-100% |
| Color temperture | 3000-13000,Adjustable |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating temperature | sub zero 10℃~55℃ |
| Stock temperature | sub zero 10℃~55℃ |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤200W/m2 |
| Viewing Angle | 120(Horizontal),120(Vertical) |
| Best Viewing Distance | 3m-9m |
| Input Voltage | 220V/110V, 50Hz/60Hz |
| Output Voltage | 5V,40A |
| Operating system | XP, WIN7, WIN8,VISTA |
| Control Mode | Synchronization |
| Input Signal | MPG/MPEG/MPV/MPA/AVI/ |
Why choose us?
1. We are Professional manufactury of LED Display for more than 10
years in Shanghai
China.
2. Integration of manufacturing and trading.
3. Well controlled product quality, OEM and ODM accepted.
4. 100% QC inspection before shipping.
FAQ:
1.Are you the manufacturer or trading company? And where is your
factory?
We are professional manufacturer of Led outdoor, Led indoor
display, rental display, stadium screen, stage screen and
advertising screen.
Our company is located in Shanghai China, which enjoys the
transportation and good reputation among our domestic and overseas
customers for more than 5 years.
2.What kind of package can you choose?
Wooden case or airflight case,And if you choose airfligh case,there
will be extra charge.
3.What is LED?
LED is the abbreviation leds (LIGHT EMITTING DIODE), it"s emit
visible wave lengths led in the LED display industry
4.What is a pixel and pixel pitch?
The pixel is the smallest unit of light consists of red,green and
blue colors. The same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two
adjacent pixels.
5.What is the LED display module?
The base unit determined by circuit and installation structure,has
the display function,can simple assembling.
6.What is 3 in 1? What is its advantages and disadvantages?
The RGB color of LED chips encapsulation SMT light vertical tied
together according to certain spacing.
The advantages are: simple production, display effect is good.
The disadvantage is spectral color separation difficult, high cost.
